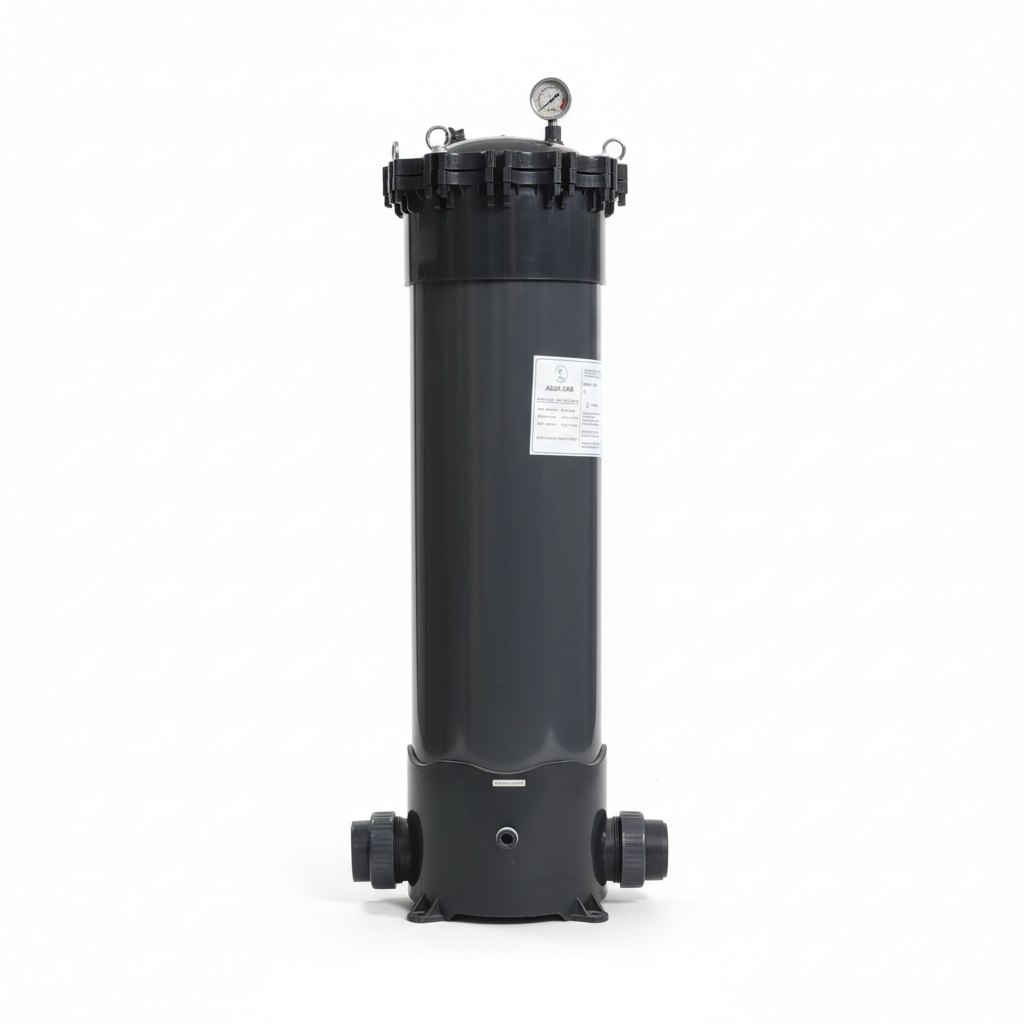

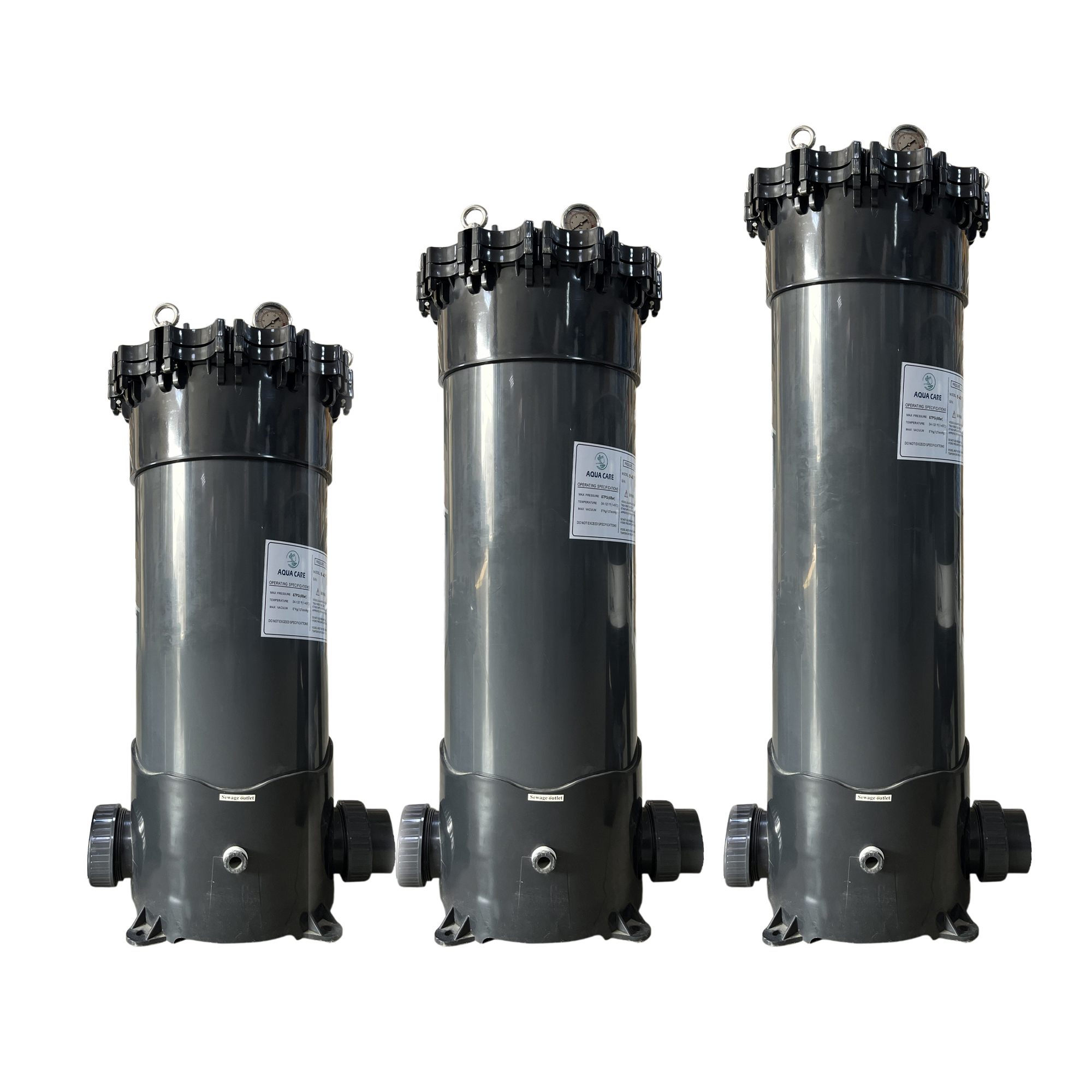

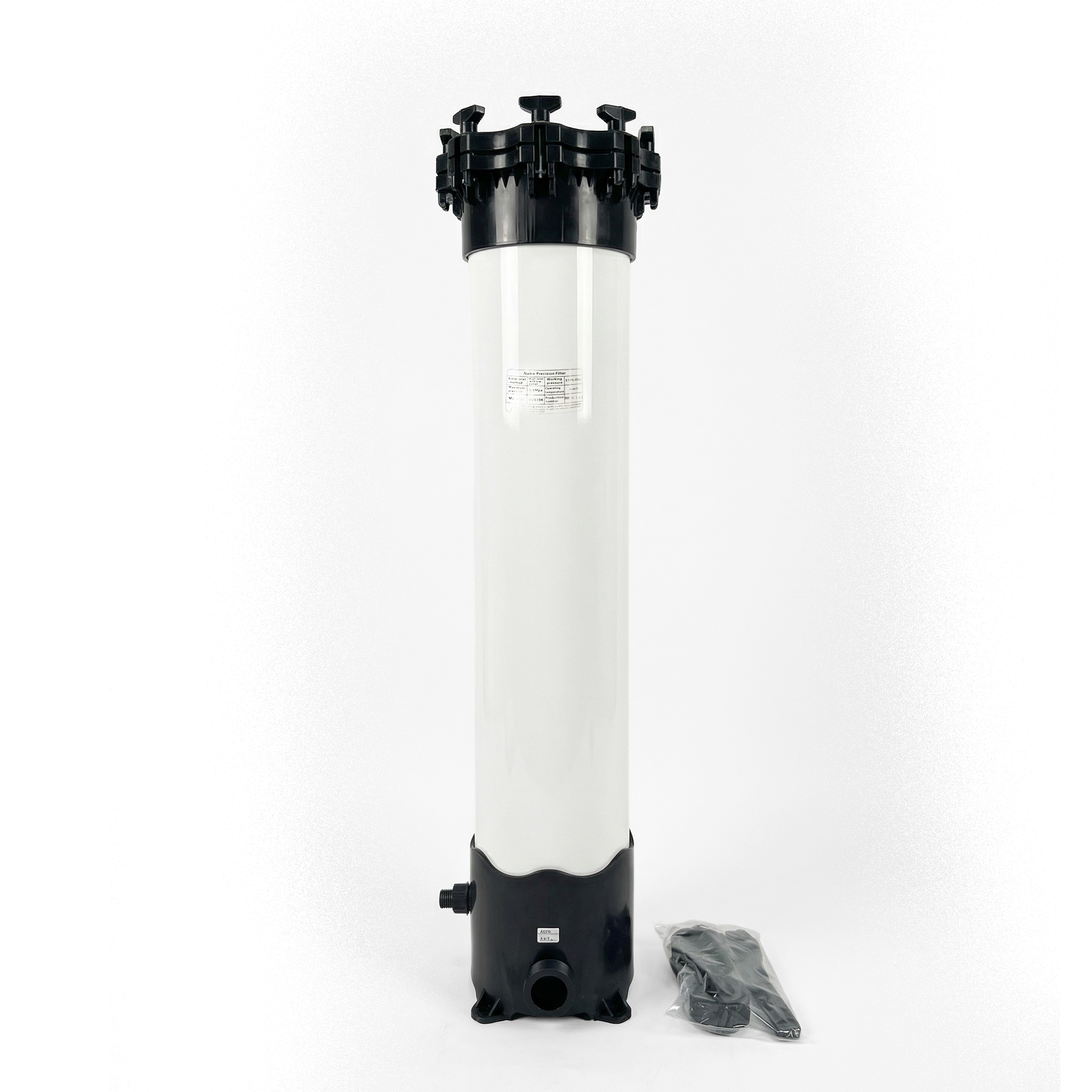

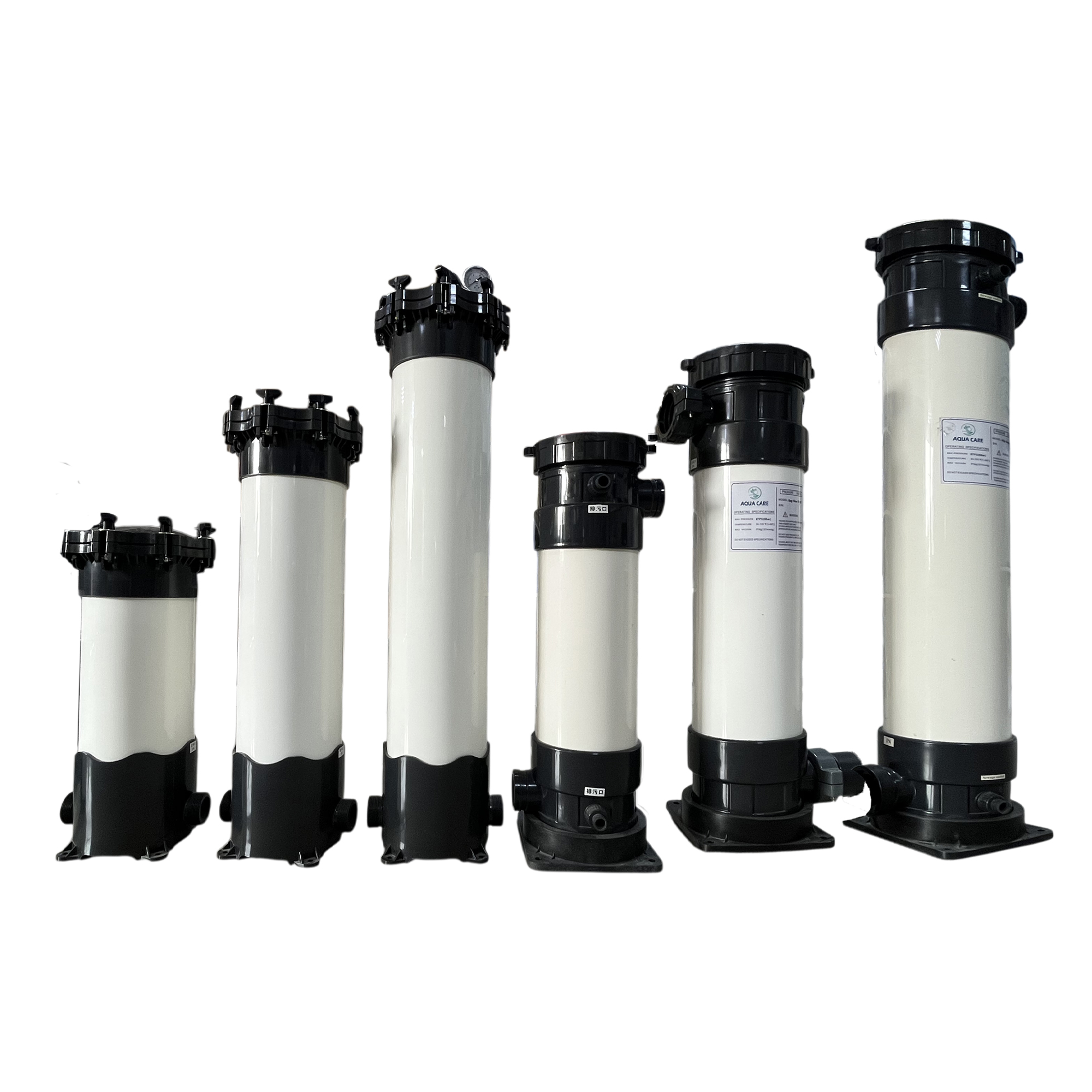

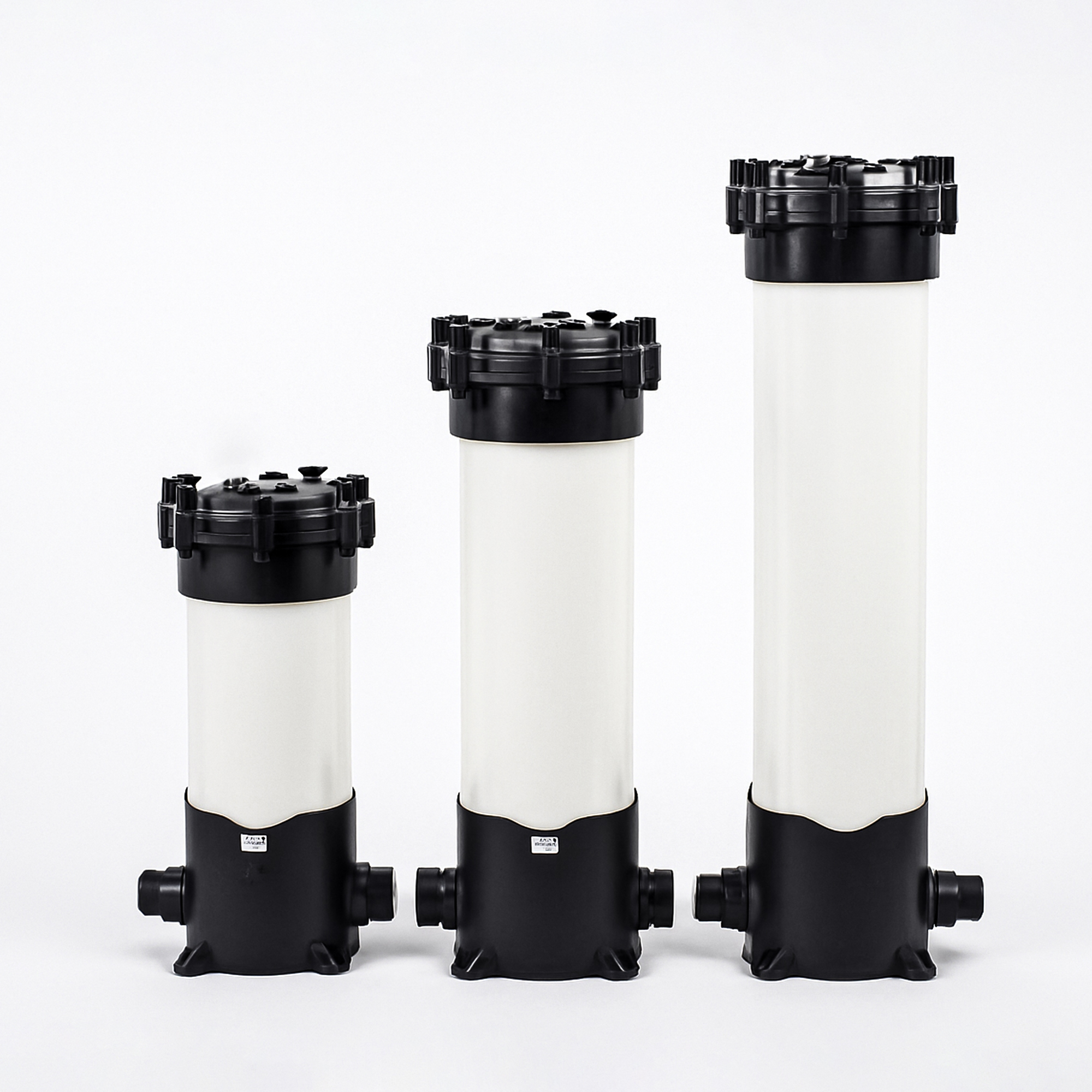

The Aqua Care UPVC Multi-Cartridge Filter Housing is designed for high-capacity water filtration systems used in industrial and commercial environments. Manufactured from durable UPVC material, it provides excellent corrosion resistance, chemical compatibility, and long service life even in demanding water treatment conditions.
| Parameter | Specification |
|---|---|
| Product Name | Aqua Care UPVC Multi-Cartridge Filter Housing |
| Material | UPVC |
| Cartridge Length Options | 20″, 30″, 40″ |
| Cartridge Diameter | 2.5″ |
| Number of Cartridges | Up to 9 Elements |
| Inlet / Outlet Size | 3″ |
| Operating Temperature | Up to 60°C |
| Working Pressure | 6 bar |
| Maximum Flow Rate | 100 GPM |
| Filtration Accuracy | 1 – 100 Micron (Depending on Cartridge Used) |
| Connection Type | Flanged or Threaded |
| Lid Type | Stainless Steel Clamp with EPDM Seal |
| Application | Industrial & Commercial Water Filtration |
