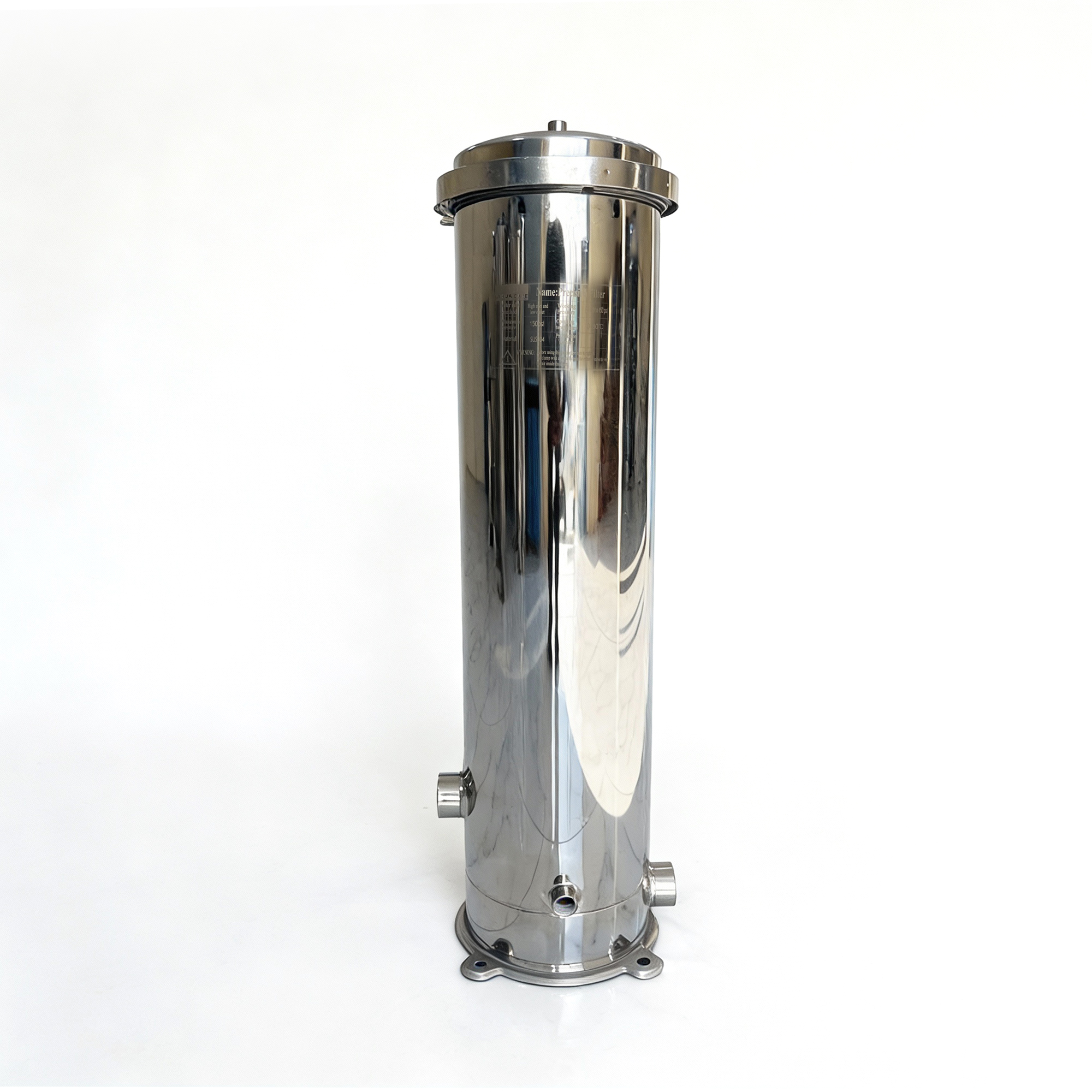

Aqua Care Stainless Steel Multi Cartridge Filter Housing – 7 Elements

Aqua Care Stainless Steel Multi Cartridge Filter Housing – 7 Elements

The Aqua Care 7-Element Stainless Steel Multi Cartridge Filter Housing is designed for high-flow industrial and commercial water filtration systems. Built from SS304 stainless steel, the housing provides excellent corrosion resistance, durability, and long service life in demanding water treatment environments.

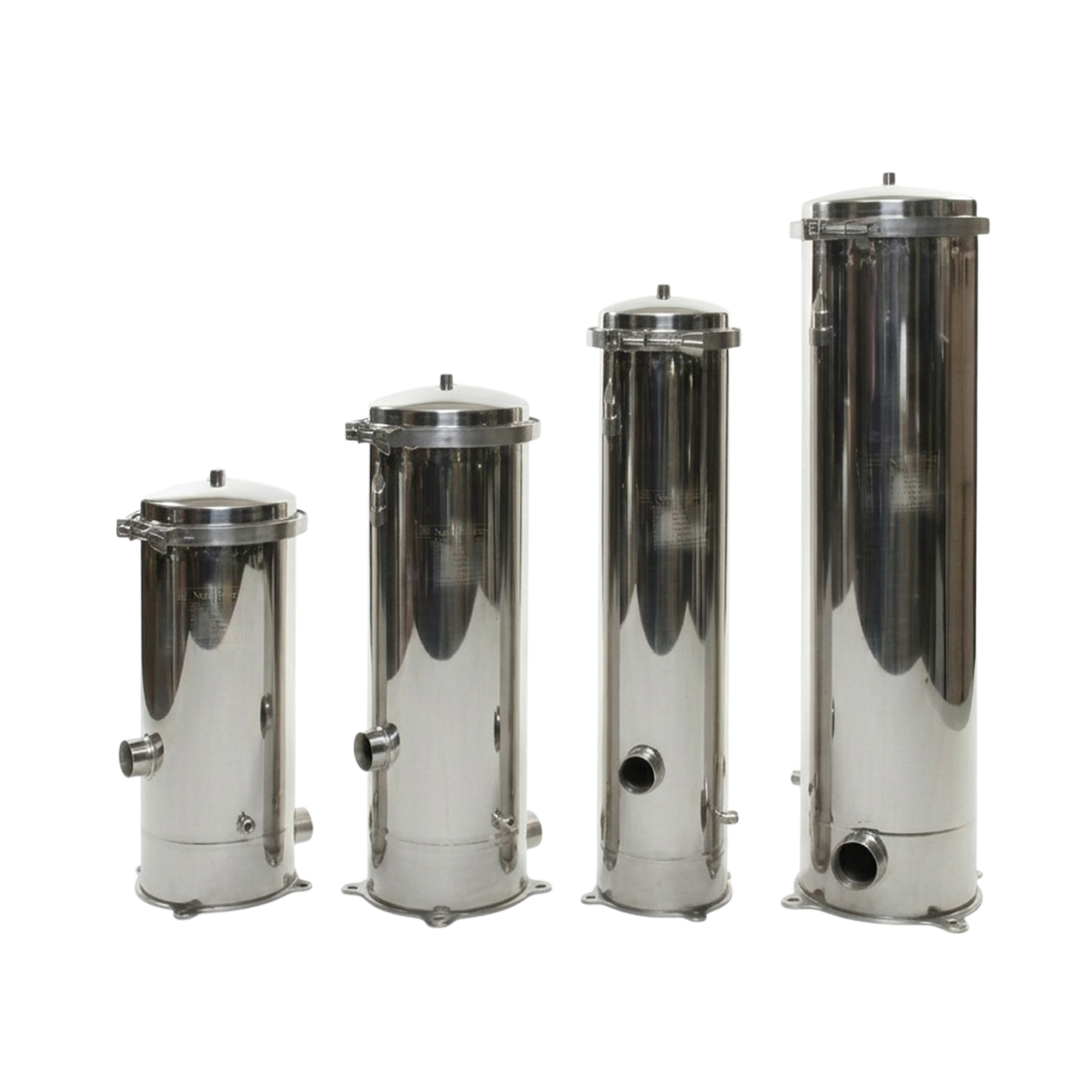

This multi-cartridge system accommodates 7 standard filter cartridges, enabling efficient removal of sediments, suspended particles, and turbidity while maintaining high flow capacity. Available in 20”, 30”, and 40” cartridge lengths, it supports various filtration requirements and ensures easy maintenance with quick cartridge replacement.

Category: Brand:
Parameter Specification
Product Name Aqua Care Stainless Steel Multi Cartridge Filter Housing
Housing Material SS304 Stainless Steel
Cartridge Type Standard DOE / PP Sediment / Carbon / Pleated
Number of Cartridges 7 Elements
Cartridge Length Options 20”, 30”, 40”
Cartridge Diameter 2.5’’
Inlet / Outlet Connection 1.5’’
Drain Connection ½’’

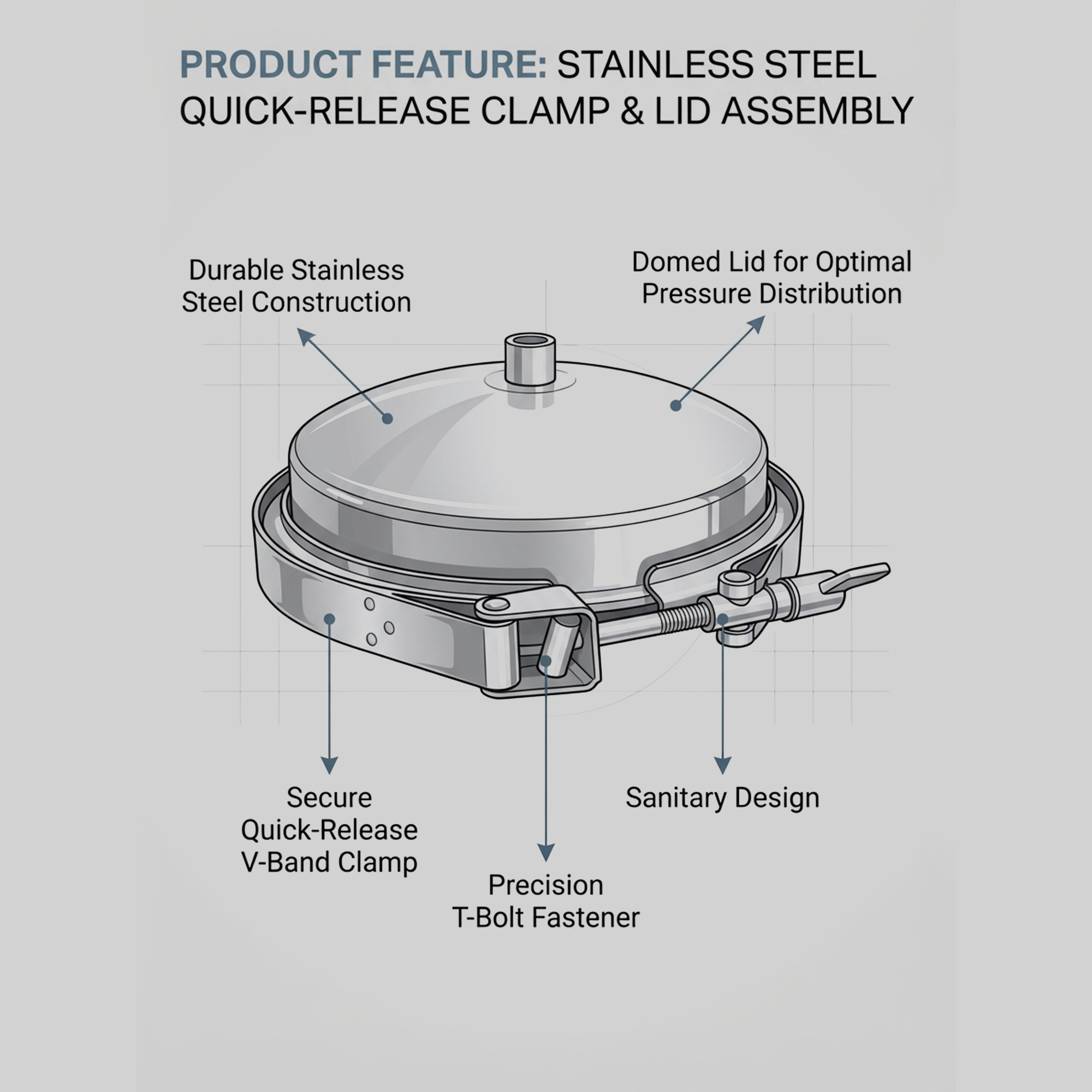

Closure Type Band Clamp Closure / Bolt Flange Lid Seal
Mounting Type Floor Mounted
Working Pressure 8 bar
Maximum Pressure 10 bar
Working Temperature 1°C – 70°C
