| Specification | Details |
|---|---|
| Model | TG100T5WC |
| Cooling Capacity | 100 Gallons Per Hour |
| Inlet Temperature | Up to 60°C |
| Outlet Temperature | 5°C |
| Storage Tank Capacity | 105 Liters (SS 304 2B Grade) |
| Compressor Capacity | 1/1.7 HP |
| Power Supply | 220–240V AC / 50Hz |
| Fan Capacity | 25 W |
| Cooling Coil Length | 80 Feet |
| Coil Size | 5/16 |
| Insulation | Factory Injected P.O Poly Foam (P120, 60/M DI – ISO) |
| Body Material Grade | 430 BA Finish & 201 Brush Finish |
| Drain Channel Steel Grade | Stainless Steel |
| Tap Distance | 10 Inches |
| Net Weight | 51.45 Kg |
| Gross Weight | 52.75 Kg |
| Dimensions (H × W × D) | 1240 × 1000 × 415 mm |
| Application | Large Commercial & Public Drinking Water Cooling |

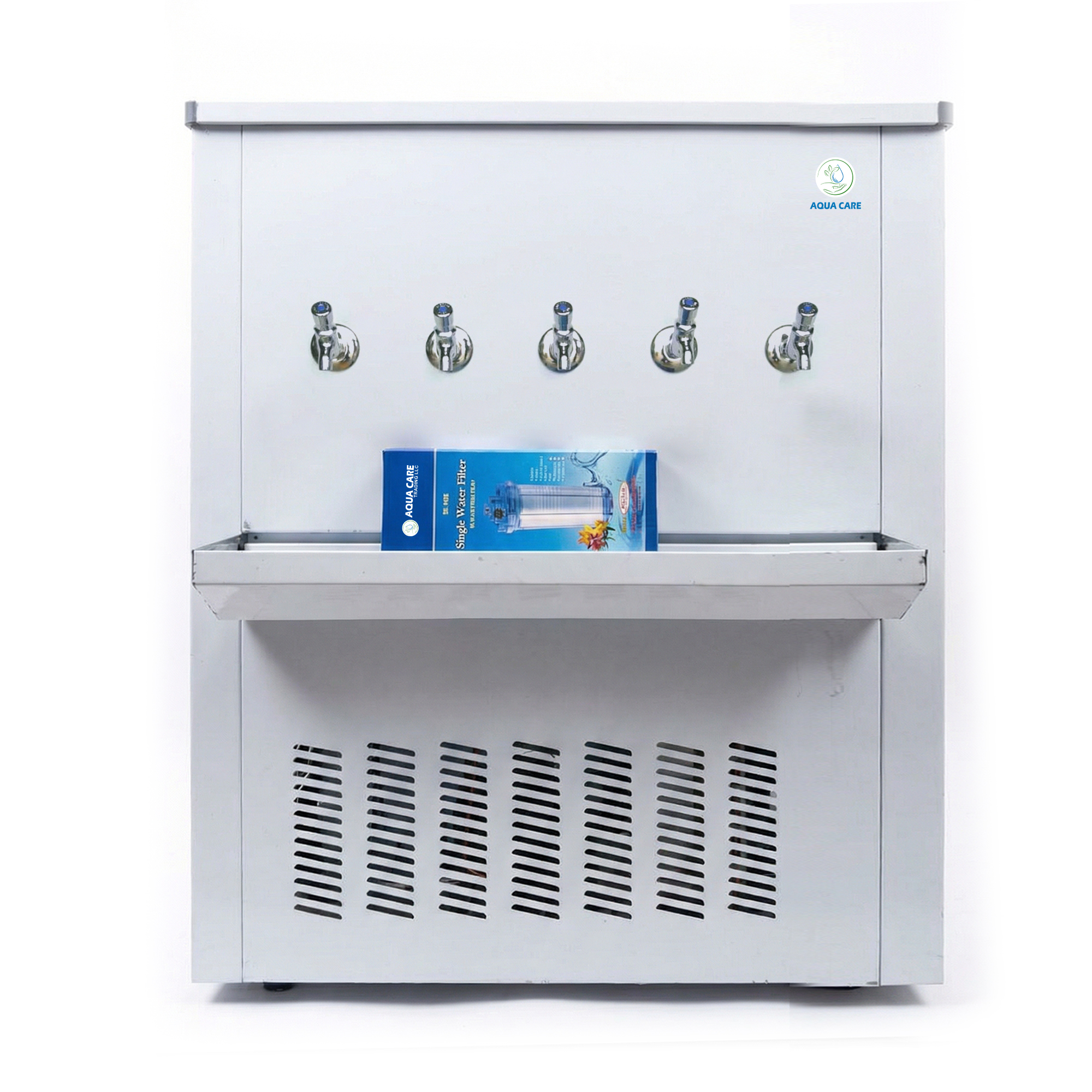

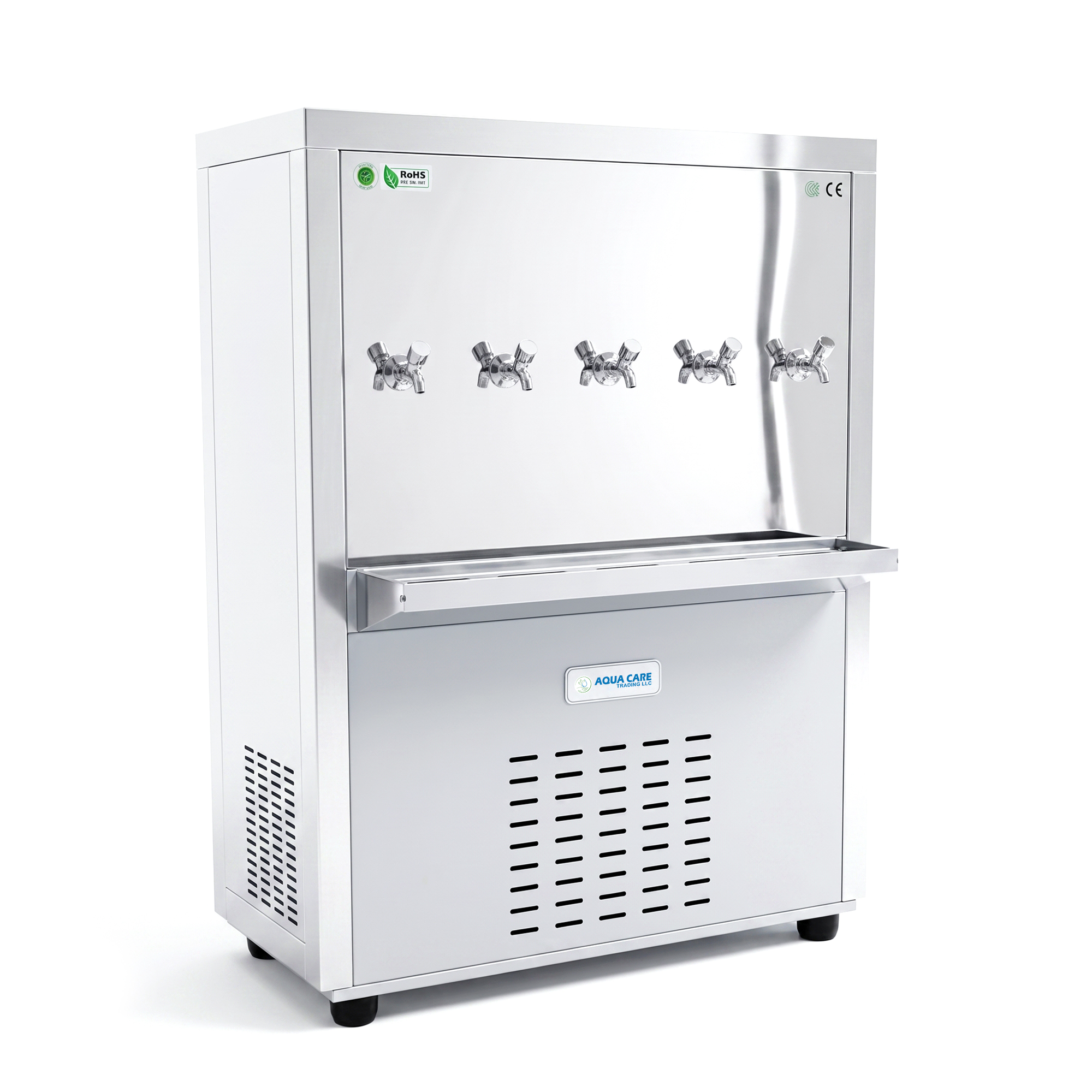

The Aqua Care TG100T5WC 100 Gallon Water Cooler is a heavy-duty commercial cooling solution designed for high-demand environments such as mosques, factories, schools, labor accommodations, and large public areas. With a powerful cooling capacity of 100 gallons per hour and a large 105-liter SS304 storage tank, it ensures a consistent and reliable supply of chilled drinking water.
Built with premium stainless steel construction, extended 80-foot cooling coil, and high-performance compressor, this unit efficiently cools water from 60°C inlet temperature down to 5°C outlet temperature. Designed for durability, efficiency, and long service life, it is ideal for large-scale water cooling applications.
