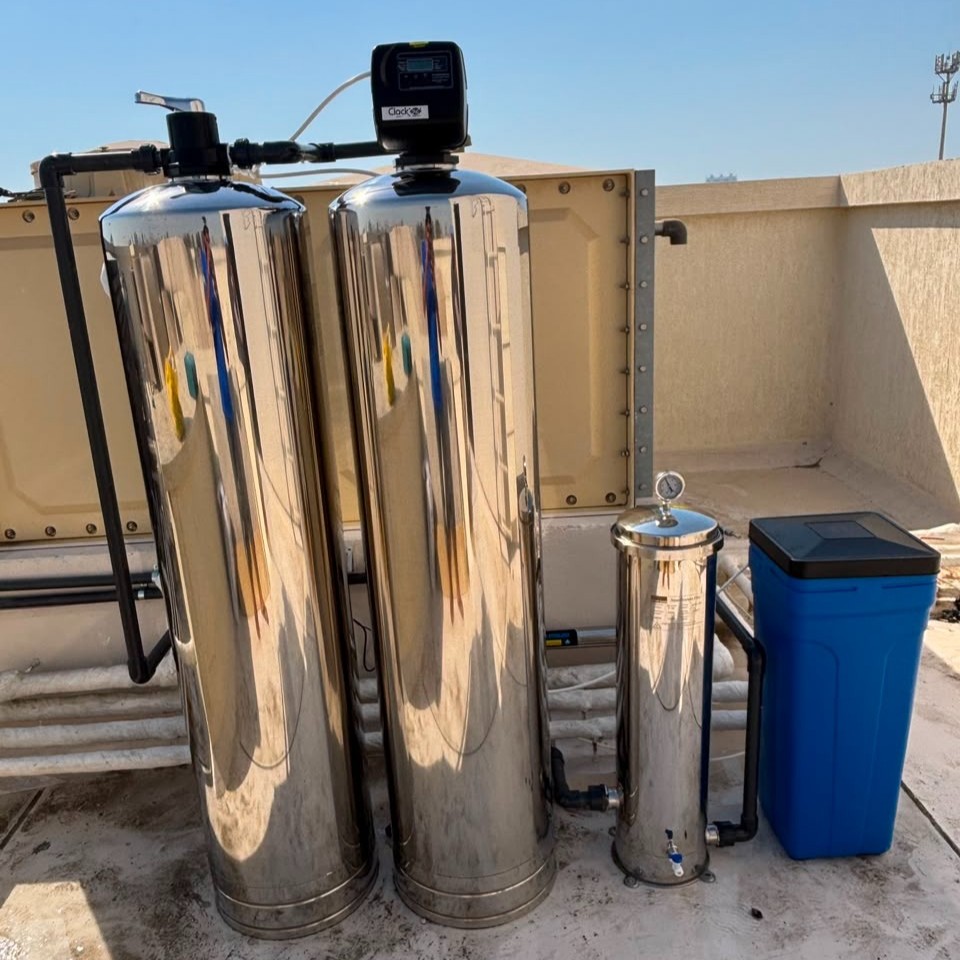

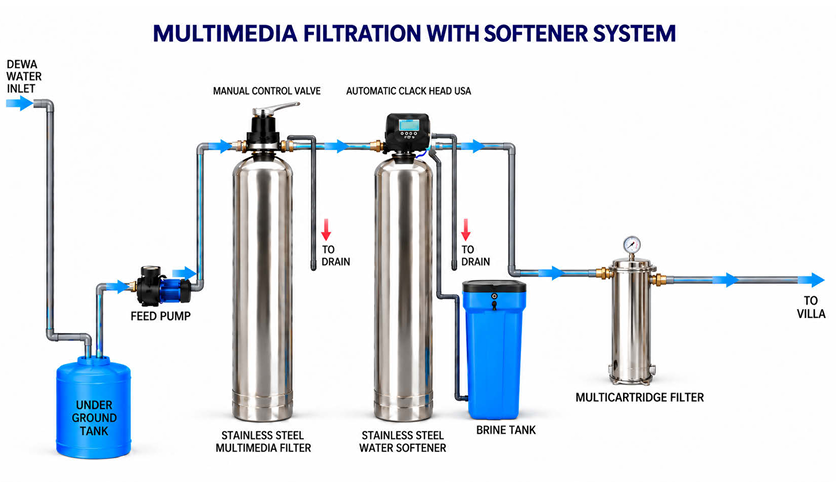

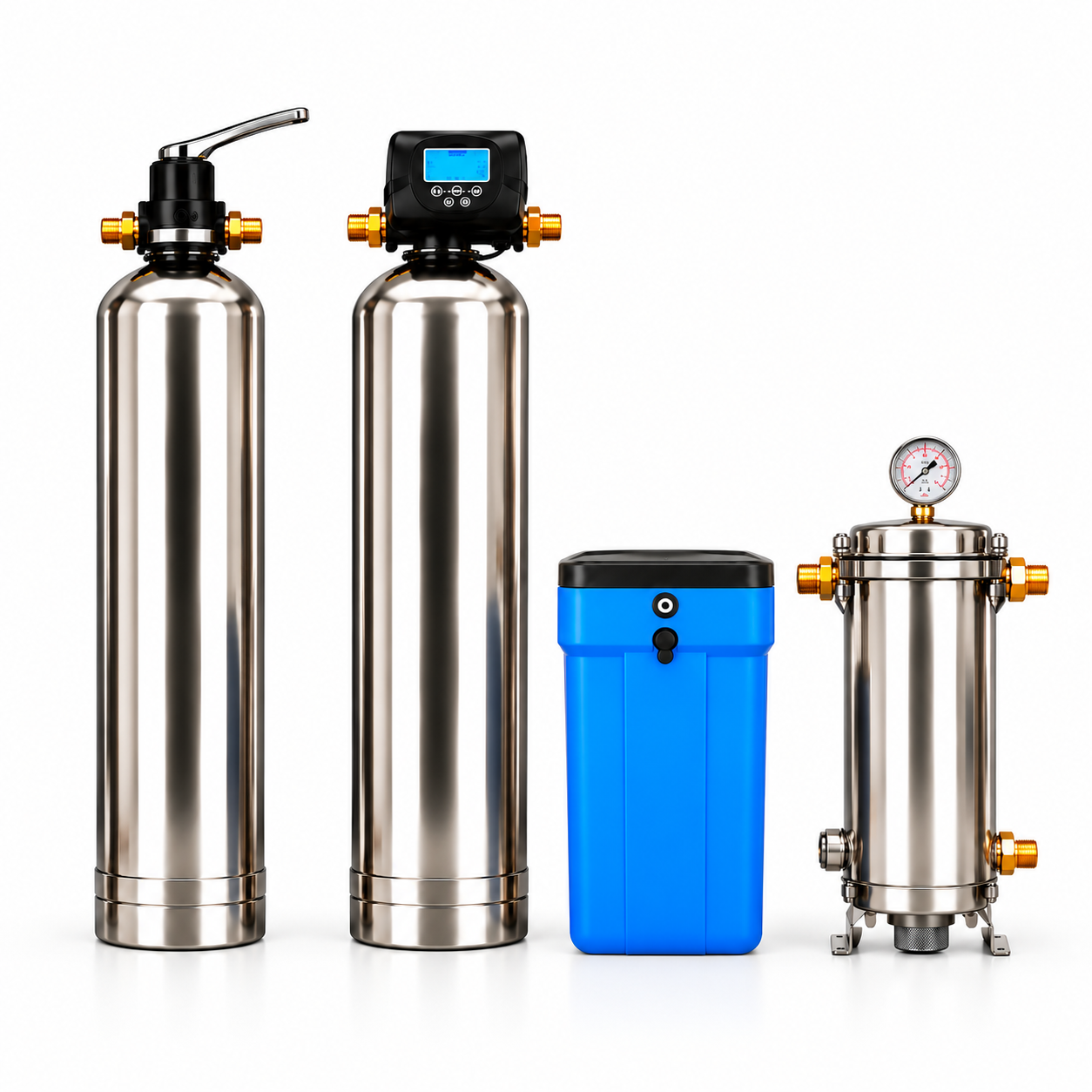

The Aqua Care Multimedia Filtration + Water Softener + SS Multi-Cartridge Filter is a heavy-duty water conditioning system designed for commercial, industrial, and high-demand residential applications. It combines multimedia filtration, automatic water softening, and high-capacity multi-cartridge filtration in one integrated system.
Shipping calculated at checkout.
| Specification | Details |
|---|---|
| Product Name | Aqua Care Multimedia Filtration + Water Softener + SS Multi-Cartridge Filter |
| System Type | Commercial & Industrial Water Conditioning |
| Multimedia Vessel | SS304 Stainless Steel |
| Multimedia Vessel Size | 16″ × 65″ |
| Softener Vessel | SS304 Stainless Steel |
| Softener Vessel Size | 16″ × 65″ |
| Multimedia Control | Manual Control Valve |
| Softener Control | Automatic Clack Head USA |
| Multimedia Media | Graded Gravel + Filtration Sand + Activated Carbon |
| Softener Media | High-Capacity Softener Cation Resin |
| Multi-Cartridge Housing | SS304 |
| Cartridge Elements | 5 Elements / 7 Elements |
| Cartridge Lengths | 20″, 30″, 40″ |
| Cartridge Standard | DOE |
| Cartridge Media | PP Melt Blown / String Wound |
| Filtration Rating | Customizable down to 1–5 Microns |
| System Flow Capacity | Scalable |
| Standard Flow Reference | Approx. 15–18 GPM / 3.5–4.0 m³/hr for 13″ × 54″ configurations |
| Operating Pressure | 3.0–6.0 bar (43–87 PSI) |
| Power Supply | 220V / 50 Hz AC Single Phase |
