| Specification | Details |
|---|---|

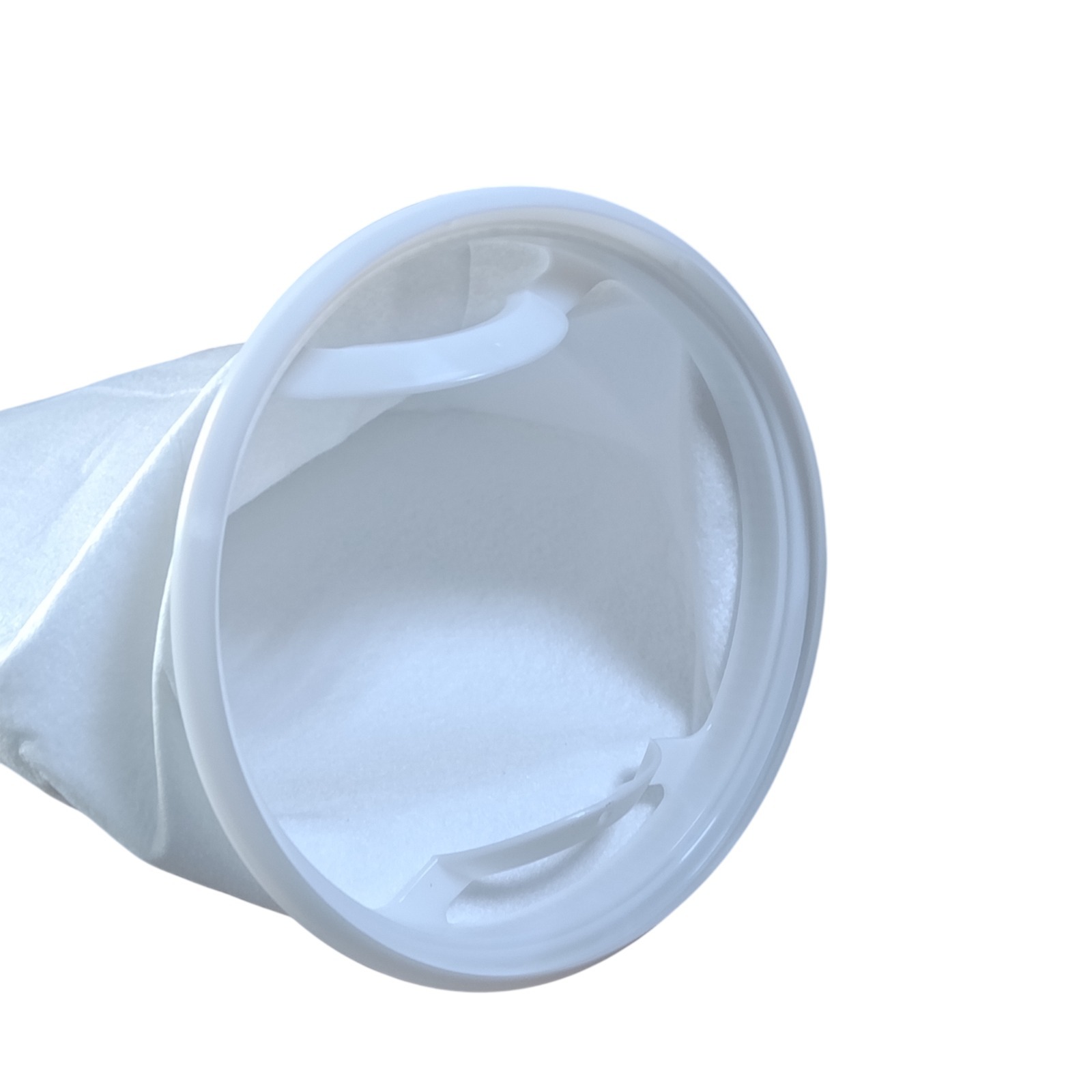

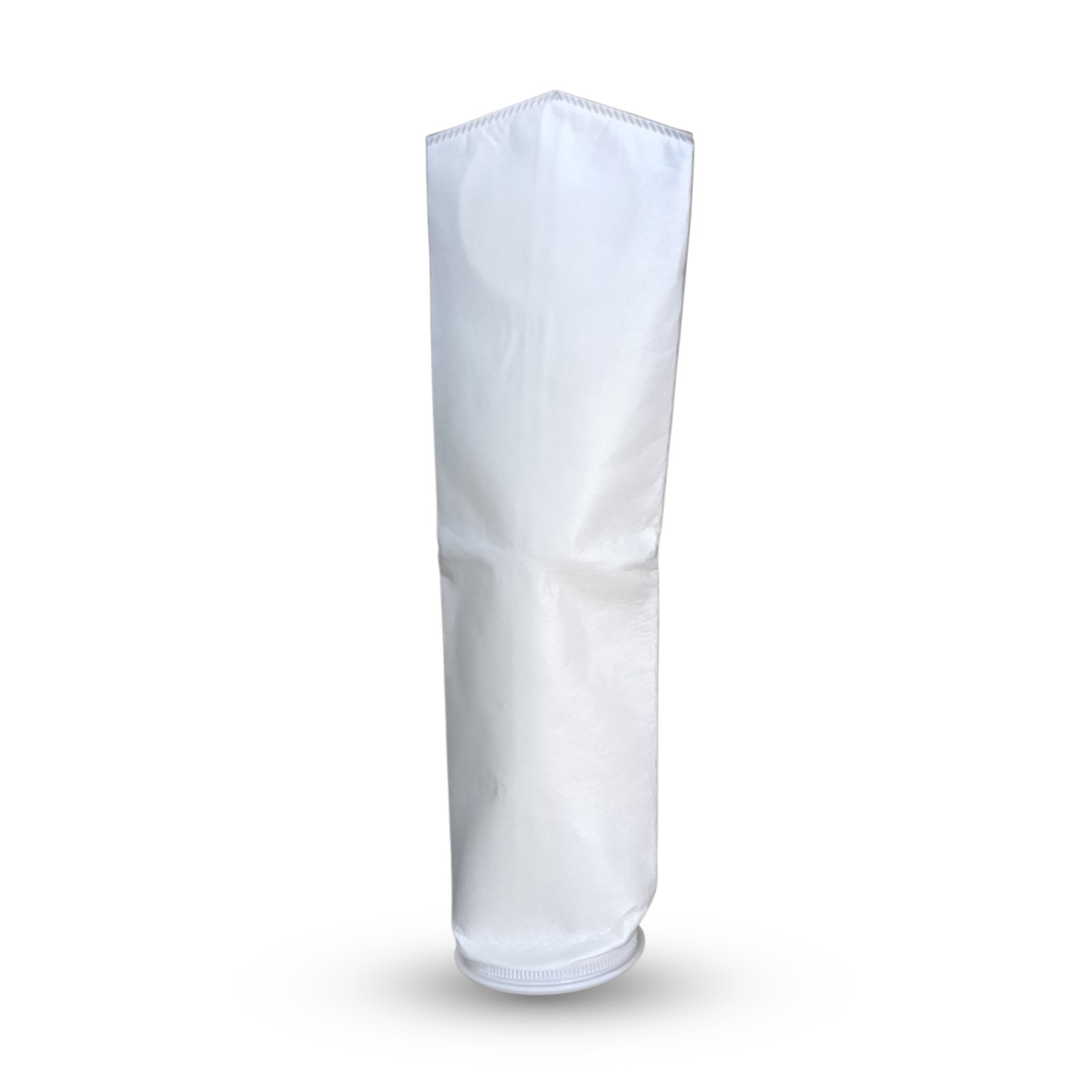

| Product Name | Aqua Care Bag Filter |
| Filter Media | Polypropylene (PP) |
| Micron Ratings | 1, 5, 10, 25, 50, 100 Micron |
| Ring Options | PP Ring, Galvanized Steel, Stainless Steel |
| Construction | Heat Set, Singed Face |
| Continuous Temperature Resistance | 90°C |
| Peak Temperature Resistance | 95°C |
| Thickness | 3.2 mm |
| Weight | 400 ±5% g/m² |
| Density | 0.13 g/cm³ |
| Air Permeability | 1000–1500, 600 L/(dm²·min) @ 200 Pa |
| Pore Volume | 86% |
| Tensile Strength | Size Sample 20/50 mm |
| Elongation at Break | Length 70%, Cross 70% |
How Does a Bag Filter Housing Work?
A bag filter housing uses a replaceable filter bag to capture suspended particles from water.
Stage 1: Water Inlet
Incoming water enters the bag filter housing through the designated inlet connection.
Stage 2: Particle Filtration
Water passes through the compatible filter bag. Suspended particles and sediment are retained by the filter media.
Stage 3: Filtered Water Outlet
Filtered water exits the housing and continues to the next stage of the water treatment system.
Stage 4: Filter Bag Replacement
When the filter bag becomes loaded with particles or the pressure drop increases, the bag can be replaced according to the system maintenance requirements.
Applications of UPVC Bag Filter Housing
Aqua Care UPVC Bag Filter Housing may be suitable for compatible filtration applications such as:
- Industrial water treatment systems
- Commercial water filtration
- RO pre-treatment systems
- Suspended particle filtration
- Process water filtration
- General water treatment installations
The suitability of UPVC depends on the water chemistry, pressure, temperature, and application requirements.
How to Choose the Right Bag Filter Housing
Before purchasing a UPVC bag filter housing, consider the following:
- Filter Bag Size: Confirm the correct filter bag size for the housing.
- Micron Rating: Select a compatible bag filtration rating based on the required particle removal.
- Flow Rate: Ensure the housing supports the required system flow.
- Connection Size: Check inlet and outlet connection dimensions.
- Operating Pressure: Confirm the housing pressure rating is suitable for your system.
- Material Compatibility: Verify UPVC compatibility with the water chemistry and operating conditions.
For technical guidance, contact Aqua Care with your system requirements.
Buy Aqua Care UPVC Bag Filter Housing in UAE
Looking for UPVC bag filter housing solutions in Dubai or anywhere in the UAE?
Aqua Care provides water filtration products for commercial, industrial, and water treatment applications. Explore our filtration solutions and choose a compatible bag filter housing for your system.
- Shop Aqua Care Water Filters
- Contact Aqua Care for Technical Assistance
- Follow Aqua Care on Instagram
Choose the appropriate filtration housing for your water treatment requirements with Aqua Care UAE.
