UV System Capacity 48 Gallons Per Minute (GPM)

UV System Capacity 48 Gallons Per Minute (GPM)

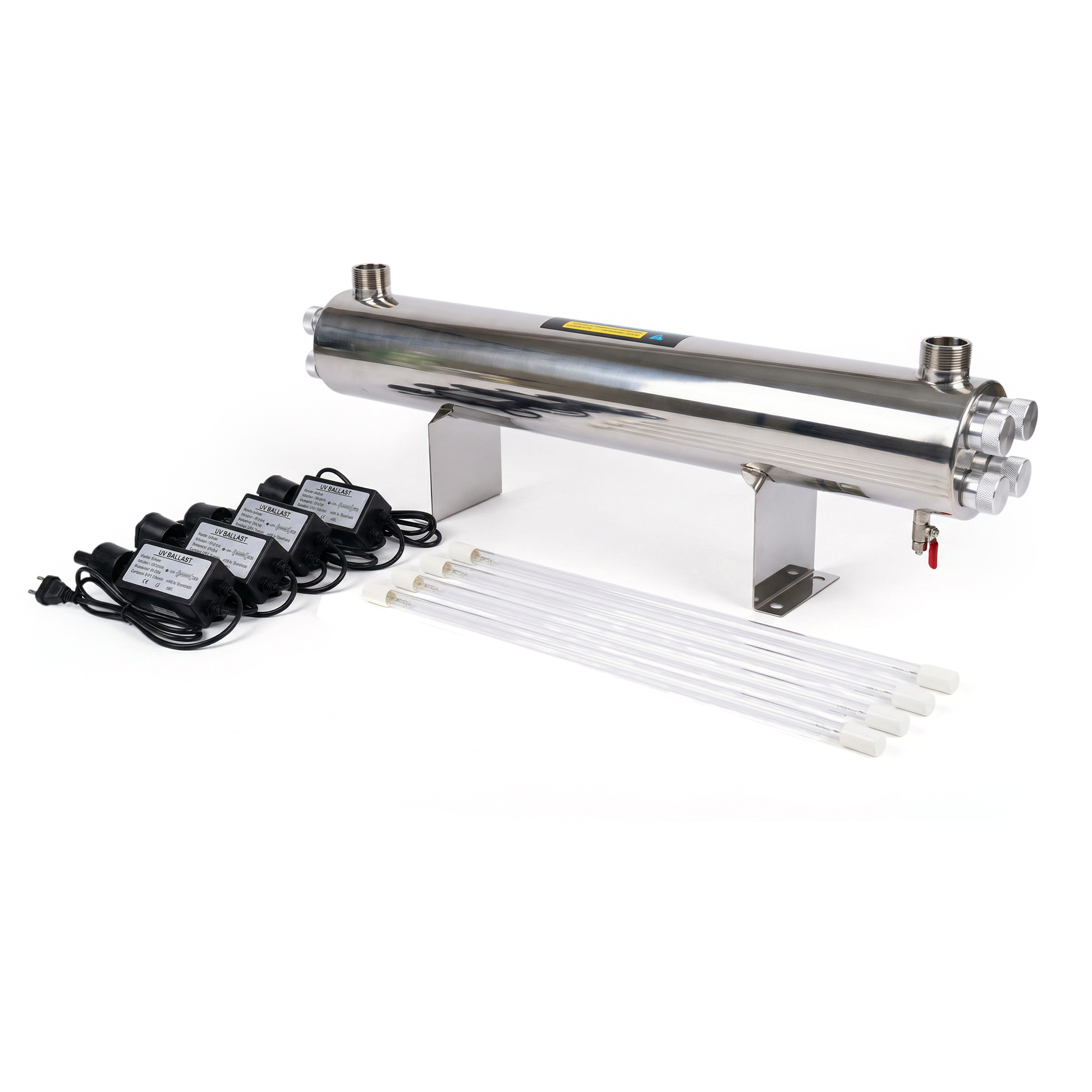

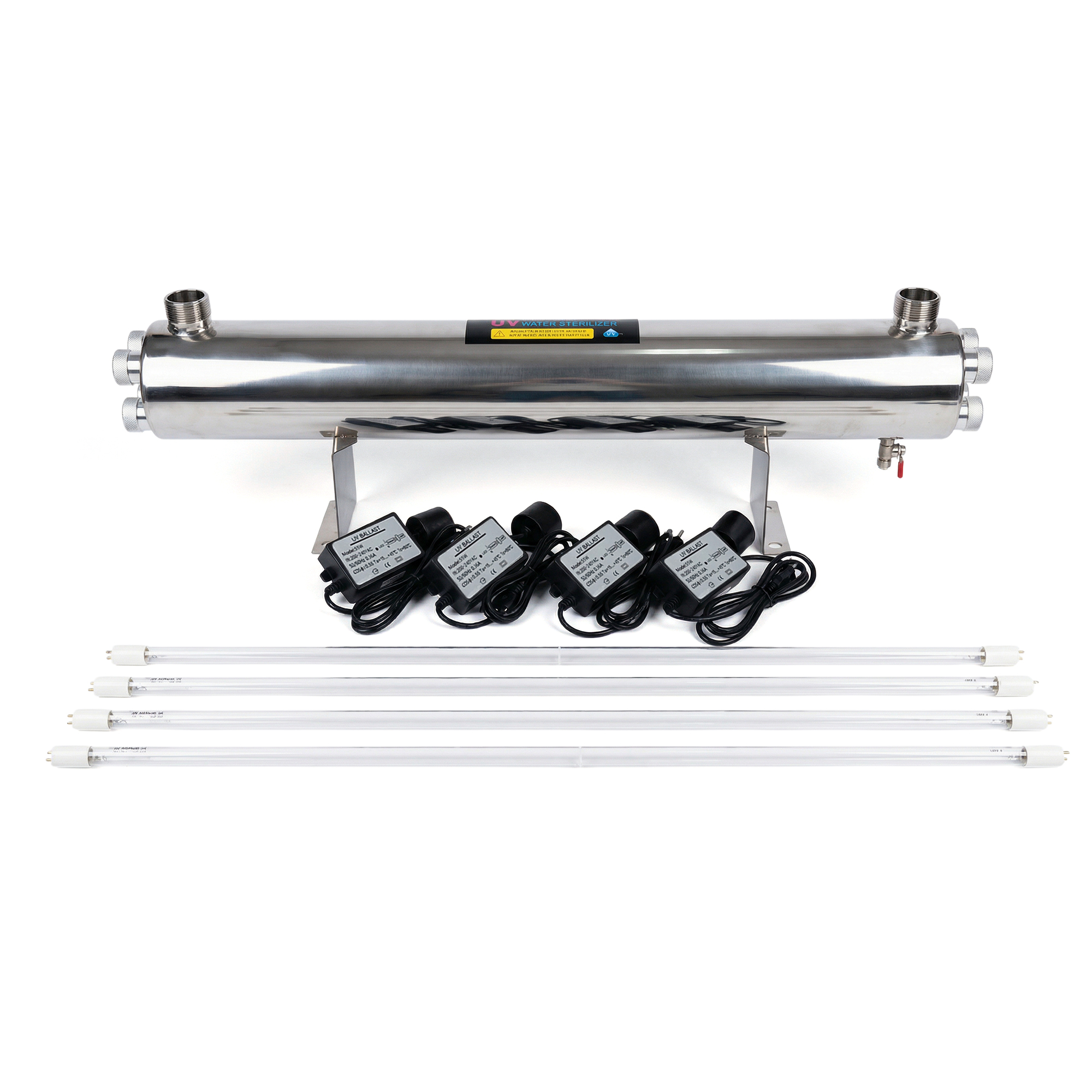

This High-Capacity UV Water Sterilizer System is designed to deliver powerful, chemical-free disinfection for commercial and industrial water applications. Using premium quartz UV lamps operating at 253.7 nm wavelength, it effectively destroys bacteria and inactivates viruses without affecting water taste, odor, or essential minerals.

Built with a polished SS304 stainless steel reactor chamber for enhanced UV reflection and efficiency, the system ensures reliable performance, long lamp life, and easy maintenance. With high flow capacity and real-time monitoring features, it is ideal for facilities requiring safe, continuous, and high-volume water sterilization.

Category: Brand:
Specification Details
System Type UV Water Sterilizer
Flow Rate 48 GPM (10,000 Liters per Hour)
UV Lamp Power 4 × 55 Watts
UV Wavelength 253.7 nm
Sterilization Efficiency Kills 99.9% of bacteria & viruses
Inlet / Outlet Connection 1½” NPT
Reactor Chamber Material Polished SS304 Stainless Steel
Maximum Operating Pressure 125 psi (8 Bar)
Lamp Life Up to 9,000 Hours
Monitoring Features Hour Meter, Light Intensity Monitor
Installation Quick & Simple
Maintenance Easy Lamp Replacement
Dimensions (W × D × L) 280 × 230 × 980 mm
Operation Type Chemical-Free Sterilization
