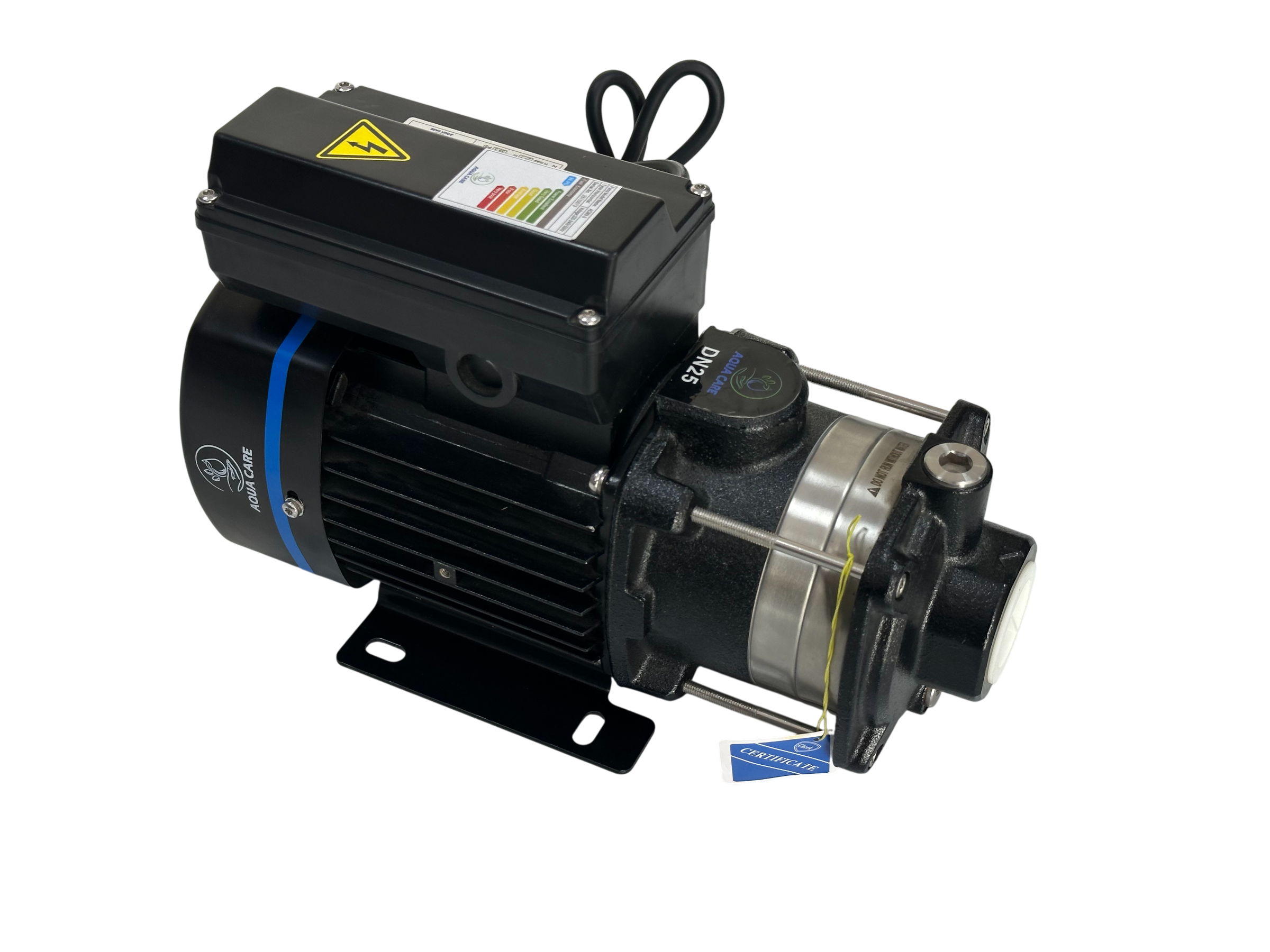

The Aqua Care ACM5-3 is a water pump designed for water transfer and circulation applications. Powered by a 0.55 kW (0.75 HP) motor, it delivers a nominal flow rate of 4.7 m³/h with a nominal head of 22.8 metres. Featuring DN32 inlet and DN25 outlet connections, this pump operates on a 220V, 50Hz power supply. It is suitable for water supply and circulation systems where the specified flow and head requirements match the application.
Shipping calculated at checkout.
| Specification | Details |
|---|---|
| Brand | Aqua Care |
| Product Type | Water Pump |
| Model | ACM5-3 |
| Motor Power | 0.55 kW / 0.75 HP |
| Voltage | 220V |
| Frequency | 50Hz |
| Nominal Flow Rate | 4.7 m³/h |
| Nominal Flow Rate (GPM) | 20.7 GPM |
| Nominal Head | 22.8 m |
| Nominal Head Pressure | 32.4 PSI |
| Maximum Head | 27.7 m |
| Maximum Head Pressure | 39.3 PSI |
| Inlet Connection | DN32 |
| Outlet Connection | DN25 |
| Certification Markings | CE, ISO 9001 displayed on label |
Aqua Care ACM5-3 Water Pump
