Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Aqua Care SW30-8040 Seawater RO Membrane |
| Product Type | Seawater Reverse Osmosis Membrane Element |
| Model | SW30-8040 |
| Membrane Chemistry | Polyamide Thin-Film Composite (TFC) |
| Permeate Flow Rate | 5,000 GPD (19 m³/day) |
| Stabilized Salt Rejection | 99.4% |
| Minimum Salt Rejection | 98.6% |
| Active Membrane Area | 300 ft² (18 m²) |
| Standard Test Pressure | 600 PSI (45 bar / 5.5 MPa) |
| Standard Test Solution | 25,000 ppm NaCl |
| Test Temperature | 77°F (25°C) |
| Test pH | 8 |
| Test Recovery | 8% |
| Maximum Operating Pressure | 1,015 PSI (70 bar) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Feed Flow Rate | 60 GPM (14 m³/hr) |
| Continuous Operating pH | 2–11 |
| Short-Term Cleaning pH | 1–13 for 30 minutes |
| Maximum Feed SDI | SDI 5 |
| Free Chlorine Tolerance | <0.1 ppm |
| Vessel Compatibility | Nominal 8″ (203 mm) ID |

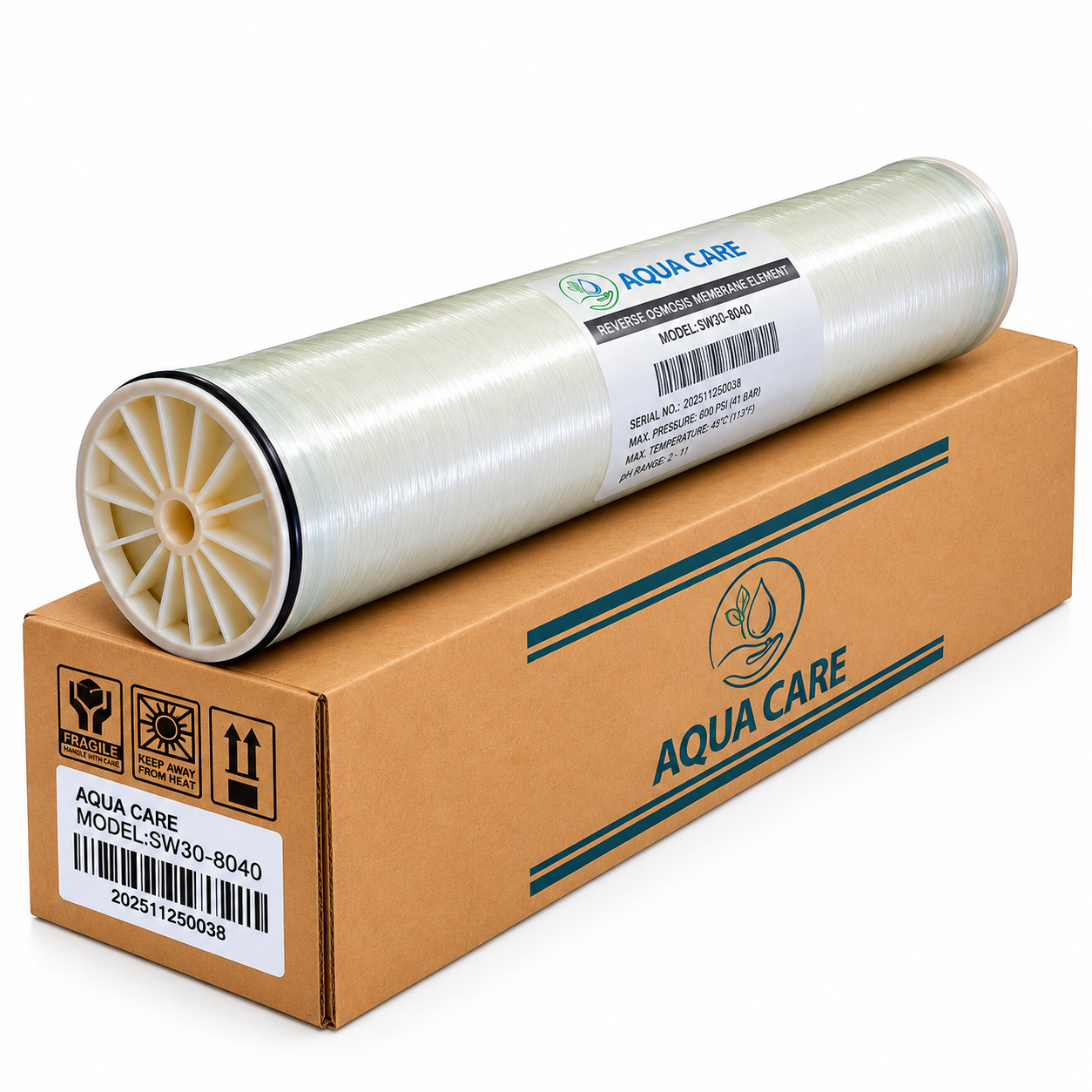

Aqua Care SW30-8040 Seawater RO Membrane
The Aqua Care SW30-8040 Seawater RO Membrane is a high-performance reverse osmosis membrane element designed for seawater desalination and industrial water treatment applications. Built with Thin-Film Composite (TFC) membrane technology, it helps reduce dissolved salts and impurities from high-salinity feedwater to produce purified water for commercial, industrial and marine applications.
With a rated permeate flow of 5,000 gallons per day (GPD) and stabilized salt rejection of 99.4%, this membrane is designed for reliable performance in seawater reverse osmosis systems. Its 8040 configuration makes it suitable for compatible standard 8-inch RO pressure vessels used in larger water treatment installations.
Key Features of Aqua Care SW30-8040
- 5,000 GPD Permeate Flow: Designed to produce up to 5,000 gallons of permeate per day under the specified standard test conditions.
- 99.4% Stabilized Salt Rejection: Helps reduce dissolved salts and improve treated water quality.
- Thin-Film Composite Technology: Uses a polyamide TFC membrane structure for seawater reverse osmosis applications.
- High-Pressure Operation: Supports maximum operating pressure up to 1,015 PSI.
- Large Membrane Surface Area: Provides 300 ft² of active membrane area.
- Standard 8040 Configuration: Designed for compatibility with nominal 8-inch inner-diameter pressure vessels.
- Chemical Cleaning Flexibility: Supports short-term cleaning within the specified pH range of 1 to 13.
How Does a Seawater RO Membrane Work?
Seawater reverse osmosis uses pressure to push feedwater through a semi-permeable membrane. The membrane allows water molecules to pass through while rejecting a large proportion of dissolved salts and other dissolved substances.
The Aqua Care SW30-8040 is designed for high-salinity water treatment systems. It separates the feed stream into purified permeate water and a concentrated reject stream containing the separated salts.
For reliable operation, the RO system should include suitable pretreatment, pressure control and monitoring. Proper pretreatment helps protect the membrane from suspended particles, fouling and oxidising agents.
Technical Specifications
- Product Model: Aqua Care SW30-8040
- Membrane Type: Polyamide Thin-Film Composite (TFC)
- Application: Seawater Desalination
- Permeate Flow Rate: 5,000 GPD (19 m³/day)
- Stabilized Salt Rejection: 99.4%
- Minimum Salt Rejection: 98.6%
- Active Membrane Surface Area: 300 ft²
- Standard Test Pressure: 600 PSI
- Standard Test Solution: 25,000 ppm NaCl
- Maximum Operating Pressure: 1,015 PSI (70 bar)
- Maximum Operating Temperature: 45°C (113°F)
- Maximum Feed Flow Rate: 60 GPM (14 m³/hr)
- Continuous Operating pH Range: 2 to 11
- Short-Term Cleaning pH Range: 1 to 13
- Maximum Feed SDI: 5
- Free Chlorine Tolerance: Less than 0.1 ppm
- Element Length: 40 inches (1,016 mm)
- Element Diameter: 7.9 inches (201 mm)
- Permeate Tube Inner Diameter: 1.125 inches (29 mm)
- Vessel Compatibility: Nominal 8-inch (203 mm) ID pressure vessel
Performance figures are based on the datasheet’s stated test conditions. Actual flow and rejection can vary depending on feedwater salinity, temperature, pressure, recovery rate and system design.
Recommended Applications
The Aqua Care SW30-8040 Seawater RO Membrane is suitable for:
- Seawater desalination plants
- Marine and shipboard RO systems
- Industrial high-salinity water treatment
- Offshore platform water supply
- Coastal resorts and commercial facilities
- Power generation feedwater treatment
Installation and Maintenance
For optimum performance, install the membrane in a compatible 8040 pressure vessel and follow the RO system manufacturer’s operating guidelines. Ensure that pretreatment is adequate and that feedwater is free from damaging levels of chlorine and other oxidising agents.
Monitor operating pressure, permeate flow, salt rejection and pressure drop regularly. Clean the membrane using suitable cleaning procedures when required. Avoid exceeding the specified operating limits, as incorrect operation can reduce membrane performance and service life.
