| Specification | Details |
|---|---|
| Brand | Hydranautics |
| Model | SWC5-LD-4040 |
| Product Type | Low-Fouling Seawater RO Membrane |
| Configuration | Low-Fouling Spiral Wound |
| Membrane Polymer | Composite Polyamide |
| Active Membrane Area | 80 ft² (7.43 m²) |
| Feed Spacer Thickness | 34 mil (0.864 mm) |
| Specified Permeate Flow Rate | 1,750 GPD (6.62 m³/day) |
| Salt Rejection | 99.7% |
| Minimum Salt Rejection | 99.5% |
| Element Length | 40 inches (1,016 mm) |
| Element Diameter | 3.95 inches (100.3 mm) |
| Inner Diameter | 0.75 inches (19.1 mm) |
| Core Tube Extension | 1.05 inches (26.7 mm) |
| Shipping Weight | 8 lb (3.6 kg) |
| Maximum Applied Pressure | 1,200 PSI (8.27 MPa) |
| Maximum Operating Temperature | 45°C (113°F) |
| Maximum Chlorine Concentration | Less than 0.1 ppm |
| Continuous Operating pH Range | 2–11 |
| Cleaning pH Range | 1–13 |
| Maximum Feedwater Turbidity | 1.0 NTU |
| Maximum Feedwater SDI (15 min) | 5.0 |
| Maximum Feed Flow | 16 GPM (3.6 m³/h) |
| Maximum Pressure Drop per Element | 15 PSI (0.10 MPa) |
| Packaging | Sealed polyethylene bag with sodium metabisulfite solution, then cardboard box |
| Included Accessories | Brine seal, interconnector, O-rings |

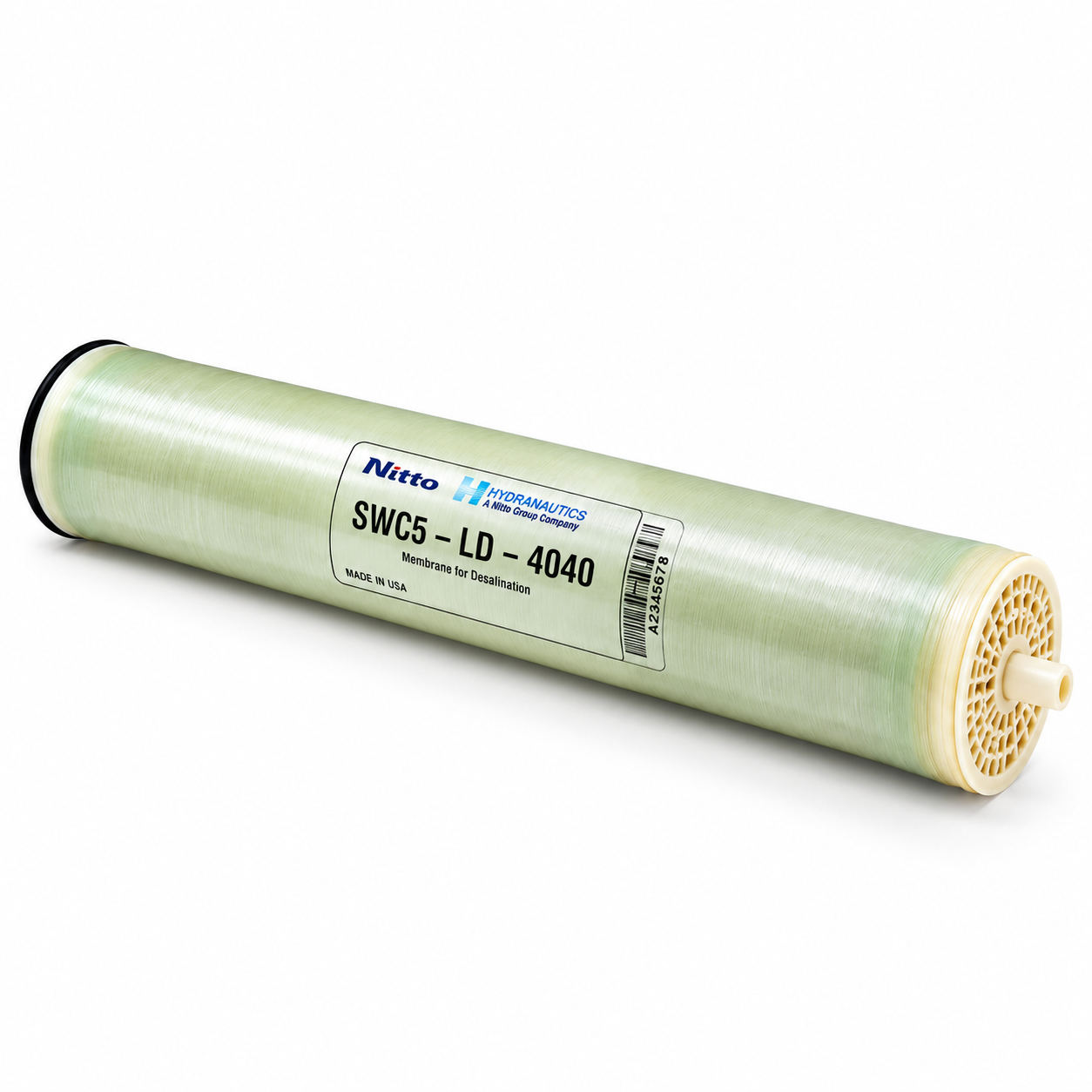

Hydranautics SWC5-LD-4040 Seaw...
